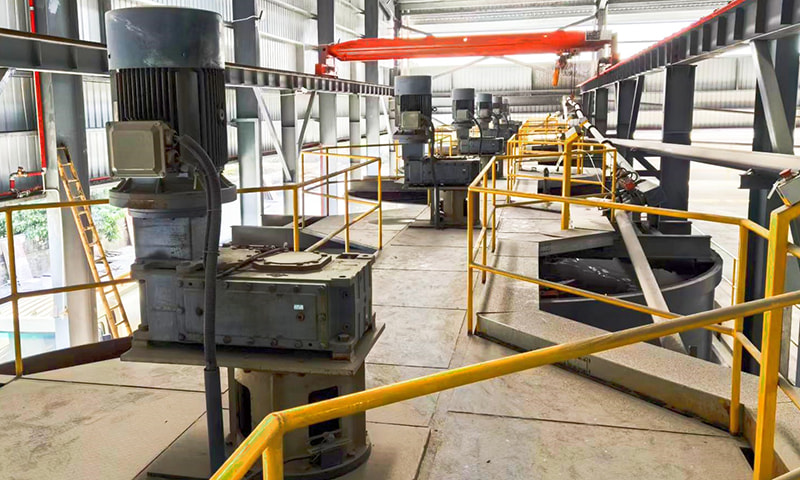

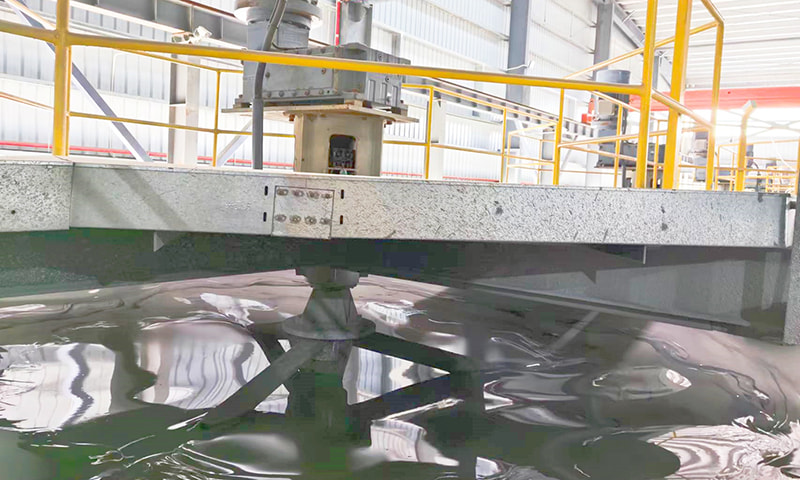

Slurry Storage Tank

Purpose: The ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

Purpose: Ball mill is the main equipment for grinding and mixing raw materials in AAC production line, fly ash, lime, gypsum, sand and other material only after grinding and reaching the required fineness while mixing and interacting in the ball mill, to achieve the strength requirements of raw materials of AAC products, therefore, ball mill is the key equipment for grinding raw materials after crushing.

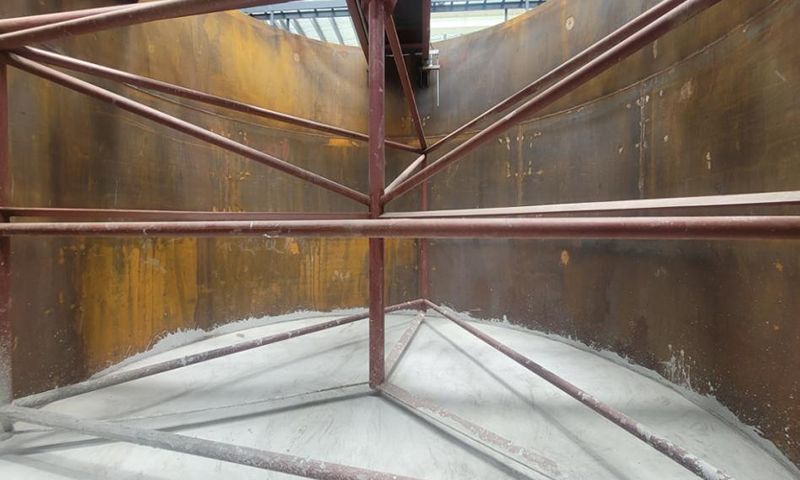

Function: Use for storage slurry after ball mill or waste slurry Model: 8m³、10m³、20m³、50m³、100m³ Mixing form: Intermediate shaft style Mixing blade form: Lined from、Triangular form

Use: The jaw crusher crushing mode for the bending extrusion type, its working principle: the motor drives the belt and pulley, through the eccentric shaft to move the jaw up and down, when the jaw rises, the Angle between the elbow plate and the jaw becomes larger, to push the jaw plate to the fixed jaw plate close, at the same time the material is crushed or crushed, rubbing to achieve the purpose of crushing; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the tie rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the broken jaw is periodically crushed and discharged to achieve mass production.

Use: TH type bucket elevator with a ring chain as the traction component, the hopper is installed on the chain at a certain interval, the chain respectively bypassing the lifting head and the bottom of the transmission sprocket, forming a closed ring system with a rising loaded branch and a falling unloaded branch. The transmission device arranged in the head of the lifting machine transmits power to the chain through the head sprocket; When the material is added from the feed port at the bottom of the elevator, the hopper moving with the chain is lifted to the head discharge port after taking the material at the bottom of the elevator, and then the material is discharged from the discharge port under the double action of gravity and centrifugal force.

Usage: Feed raw material into a ball mill
