AAC Block Production Line: An In-Depth Overview of the Manufacturing Process

Autoclaved Aerated Concrete (AAC) blocks have become a popular choice in the construction industry due to their sustainability, lightweight, and exceptional insulation properties. The AAC block production line involves a multi-step process that transforms basic raw materials like cement, lime, sand, water, and aluminum powder into durable building blocks.

Choosing and Preparing Raw Materials

The quality of AAC blocks largely depends on the raw materials used in the production line. Ensuring the consistency and correct proportions of these materials is vital for the desired physical and mechanical properties of the final product. Below are the key components:

Cement
Cement is the primary binding agent in the AAC block production line, providing strength and durability. Ordinary Portland cement (OPC 53 Grade) is commonly used due to its high compressive strength and quick setting time. The quality of cement is tested for its fineness, specific gravity, and consistency before use to ensure the required standards are met.

Lime
Lime plays a crucial role in the chemical reactions that generate calcium silicate hydrates, which contribute to the blocks’ strength. Both quicklime and hydrated lime are used depending on the specific needs of the production setup. The particle size of lime, typically between 45 to 75 microns, greatly influences its reactivity during the autoclaving process.

Sand or Fly Ash
Sand or fly ash forms the bulk of the AAC blocks, influencing their overall strength. Fly ash is a preferred option due to its environmental benefits as a by-product of coal combustion. The materials are ground to a fine powder to facilitate the necessary chemical reactions during curing.

Gypsum
Gypsum is added in small quantities to regulate the setting time of the mixture, ensuring workability and facilitating the formation of calcium sulfate hydrates that help strengthen the blocks.

Aluminum Powder
Aluminum powder is the key element that introduces porosity to AAC blocks. It reacts with lime and water to produce hydrogen gas, forming tiny bubbles throughout the slurry and giving the blocks their lightweight, cellular structure. The amount of aluminum powder is carefully controlled to achieve the required porosity and strength.

Mixing of Raw Materials

The mixing stage in the AAC block production line ensures that the raw materials are evenly distributed, and the chemical reactions that form the blocks occur uniformly. The process involves both dry and wet mixing.

• Dry Mixing: The cement, lime, gypsum, and fine sand or fly ash are mixed dry to ensure uniform distribution of solids.
• Water Addition: Water is added to the dry mix to create a slurry, with a controlled water-to-solid ratio of about 0.6 to 0.65.
• Aluminum Powder Addition: Once the slurry forms, aluminum powder is added, initiating the reaction that causes the slurry to expand. This step must be quick to prevent premature gas formation.

The entire process is completed within a specific time frame to ensure homogeneity without overmixing, which could hinder the chemical reactions needed for proper expansion.

Casting the Slurry

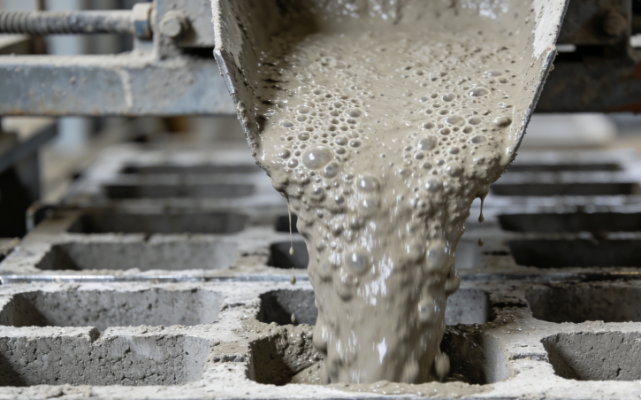

After mixing, the slurry is poured into molds, where it begins to expand. The molds are typically made of steel and treated with a release agent to avoid sticking. The key steps include:

• Mold Preparation: Molds are prepared to allow room for expansion as the aluminum powder reacts with the lime and water, causing the mixture to rise.
• Pouring the Slurry: Automated machinery pours the slurry into the molds to ensure consistent filling.
• Expansion: As the slurry sets, it expands, increasing in volume by up to 50%. The mixture forms tiny air bubbles, resulting in the cellular structure that makes AAC blocks light yet strong.
• Setting Time: The slurry sets for 2 to 4 hours, forming a stable “green cake” that will later be cut into individual blocks.

Pre-curing

Pre-curing is a critical step in the AAC block production line, ensuring that the green cake gains sufficient strength to withstand the subsequent cutting process. During pre-curing, the temperature and humidity levels are carefully controlled to prevent premature drying or cracking.

• Temperature Control: The process occurs at ambient or slightly elevated temperatures (around 35°C to 40°C).
• Humidity Control: Humidity is maintained between 50% and 70% to prevent the green cake from drying too quickly.
• Duration: Pre-curing typically lasts between 2 and 4 hours, allowing the green cake to achieve enough hardness for handling while remaining soft enough for cutting.

Cutting the Cake

Once pre-curing is complete, the green cake is transported to the cutting section. The cutting process is crucial for achieving uniform block sizes and shapes.

• Cutting Method: High-tensile wires are used to cut the green cake both horizontally and vertically, ensuring precise dimensions and reducing material waste.
• Custom Sizes: While standard block sizes (e.g., 600 mm x 200 mm x 100 mm) are common, custom sizes can be produced based on project requirements.
• Edge Trimming: After cutting, excess material is trimmed from the edges to ensure the blocks meet dimensional tolerances.

Autoclaving

Autoclaving is the important stage in the AAC block production line. It involves high-pressure steam curing that strengthens the blocks and gives them their final properties.

• Loading the Autoclave: The cut blocks are placed in autoclave trolleys and wheeled into the autoclave chambers, where the blocks are subject to high-pressure steam at temperatures up to 180°C.
• High-pressure Steam Curing: The blocks are cured for 8 to 12 hours, during which the lime, cement, and silica react to form calcium silicate hydrates, giving the blocks their strength.
• Cooling: After the autoclaving process, the blocks are gradually cooled to prevent thermal shock and cracking.

De-Molding and Finishing

Once the autoclaving process is complete, the blocks are de-molded and cooled to room temperature.

• De-Molding: The blocks are carefully removed from their molds.
• Surface Finishing: Any rough edges or imperfections are smoothed using sanding equipment.
• Edge Trimming: Further trimming ensures that the blocks are within the specified size and tolerance for construction use.

Quality Control and Testing

Quality control is a critical part of the AAC block production line, ensuring that the final product meets industry standards.

Density Testing: Ensures the blocks have a density between 500 and 800 kg/m³, which is crucial for their thermal insulation and strength.

Compressive Strength Testing: The blocks are tested to ensure they can support the required load.

Thermal Insulation Testing: Measures the heat resistance of the blocks, ensuring they perform well in energy-efficient buildings.

Water Absorption Testing: Ensures the blocks resist moisture, preventing dampness and improving durability.

Dimensional Accuracy: Ensures that the blocks meet the required dimensions, reducing the need for adjustments during construction.

Packaging and Dispatch

Once the blocks pass all quality checks, they are carefully packaged for dispatch.

• Palletizing: Blocks are stacked on wooden or plastic pallets for easy transportation.
• Wrapping: The pallets are wrapped in plastic film to protect them during transit.
• Labeling: Each pallet is labeled with key information, including block size, batch number, and manufacturing date.

Finally, the blocks are loaded onto trucks for delivery to construction sites.

Conclusion

The AAC block production line is a highly controlled process that involves multiple stages, each critical for ensuring the final blocks meet the required standards of strength, durability, and performance. From raw material selection to quality control, every step plays a role in the creation of these innovative building materials, which offer sustainable and energy-efficient solutions for modern construction.

FAQ

1. What are the main materials used in the AAC block production line?
The primary materials are cement, lime, sand or fly ash, gypsum, and aluminum powder. These components are mixed and processed to form the AAC blocks.

2. What is the purpose of autoclaving in the AAC block production process?
Autoclaving involves curing the blocks with high-pressure steam, which helps them achieve their final strength and durability. This process accelerates the chemical reactions that give AAC blocks their strength.

3. How is the porosity in AAC blocks created?
Porosity is created through the reaction of aluminum powder with lime and water. The hydrogen gas produced forms tiny air bubbles, creating the lightweight, cellular structure of the blocks.

4. What are the benefits of using AAC blocks in construction?
AAC blocks are known for their lightweight nature, thermal insulation properties, fire resistance, and sustainability. They also help reduce the overall weight of buildings, improving energy efficiency.

5. How are quality control and testing conducted in the AAC block production line?
Quality control includes testing for density, compressive strength, thermal insulation, water absorption, and dimensional accuracy. These tests ensure the blocks meet industry standards and client requirements.
